Adhesives play a critical role in modern manufacturing, assembly and packaging. Among them, hot melt adhesives (HMAs) have become a go-to solution in many industries because they combine fast setting, relatively high strength, solvent-free operation and compatibility with automation. In this guide, we’ll cover definitions and fundamentals, chemistry and formulation, applications, selection criteria, processing & application best practices, and common troubleshooting. Whether you’re in packaging, woodworking, print finishing or other assembly operations, understanding hot melt adhesives can help you specify the right material and get reliable performance.
What are Hot Melt Adhesives?

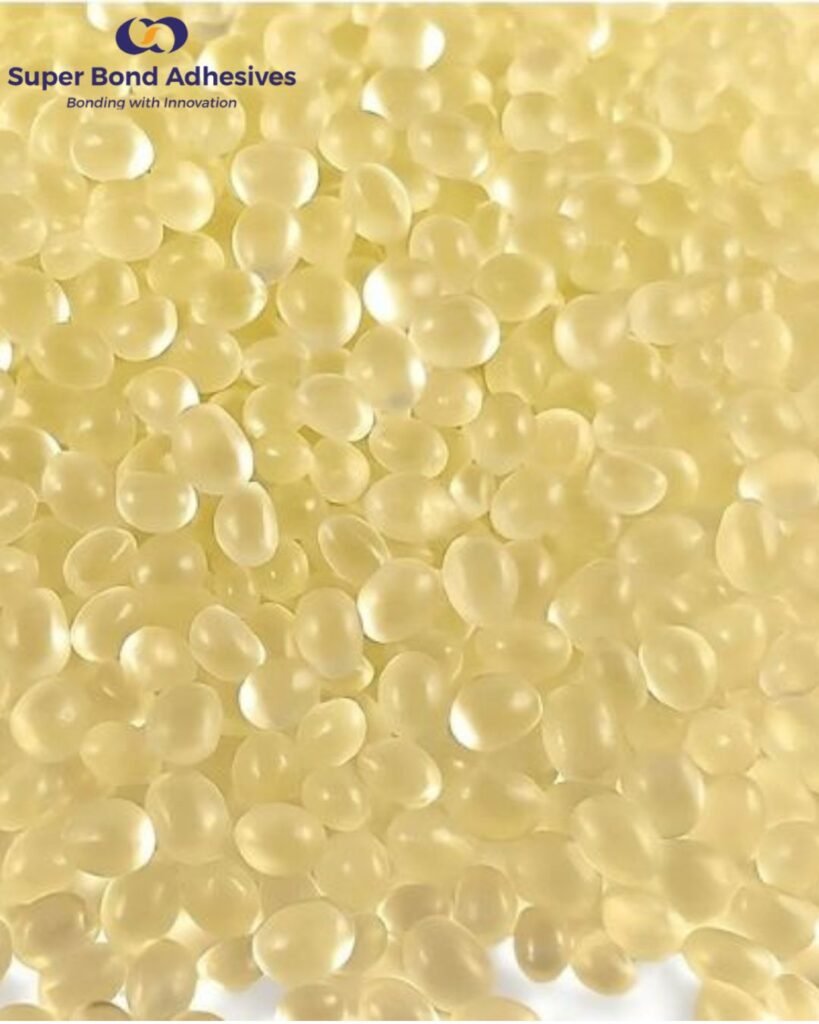

A hot melt adhesive is a thermoplastic bonding material supplied in solid form at room temperature. When heated to its molten state it is applied to one or more substrates and upon cooling it solidifies to form a bond.
Because it’s 100% solid (in many cases) and does not rely on solvent evaporation or chemical curing (in general‐purpose cases), the process is comparatively fast and clean.
The basic mechanism:
-
The adhesive (a thermoplastic polymer matrix plus additives) is heated above its melting point or melting zone.
-
The molten adhesive is applied onto a substrate (or between two substrates). For good bonding, the molten adhesive must wet the substrate’s surface (fill micro-crevices).
-
After application, the adhesive cools and solidifies. The solid bond relies on cohesion (within the adhesive) and adhesion (between adhesive and substrate).
-
In special cases (e.g., reactive hot melts like polyurethane hot melts or HMPSA) further cross-linking or moisture reaction may occur, increasing bond strength over time.
2.3 Why use hot melts
Key advantages include:
-
Fast set/solidification → high line speeds.
-
Solvent-free (or low volatile) → fewer emissions, safer work environment.
-
Good storage stability (solid at room temp, many don’t require special conditions)
-
Suitable for automation and continuous processing (bulk systems, applicators)
3. Chemistry and Formulation Basics
3.1 Ingredients and their roles
A well-formulated hot melt adhesive typically comprises:
-
Base polymer(s) – provide backbone strength, flexibility, thermal resistance.
-
Tackifiers – resins that enhance initial adhesion/wetting.
-
Waxes or plasticizers – adjust viscosity, set time and working temperature.
-
Additives – antioxidants, UV stabilisers, fillers, processing aids.
3.2 Polymer types
Some commonly used polymer systems:
-
Ethylene-vinyl acetate (EVA) – popular, versatile, cost-effective.
-
Amorphous polyolefins (APO/APAOs) – better heat/cold resistance, longer open-time.
-
Polyamides, polyurethanes (PUR) – higher performance (heat/chemical resistance) but higher cost.
3.3 Key formulation properties
-
Melt viscosity – must be low enough for good wetting and applicator performance.
-
Open time – the time window before the adhesive cools/sets and substrate bonding must occur.
-
Set time / tack development – rapid solidification is often desired in production.
-
Service temperature and ageing – adhesion/cohesion must remain under expected end-use conditions (temperature, moisture).
4. Applications of Hot Melt Adhesives
Hot melts are used across many industries. Here are some prominent application domains:
4.1 Packaging & Carton Sealing
Hot melts are extensively used in corrugated carton closing, sealing paper-bags, tray forming, etc. Their fast set and bond strength are ideal for high throughput packaging lines.
4.2 Print Finishing & Bookbinding
In bookbinding, hot melt adhesives are used for spine gluing, casing in, etc. The adhesive needs to bond varying weights of paper, survive trimming and handle use.
4.3 Woodworking / Furniture / Laminating
Edge banding, panel lamination, wood-to-wood bonding benefit from hot melts because they allow rapid production without waiting for extended curing.
4.4 Hygiene / Medical & Pressure-Sensitive Hot Melts (HMPSA)
Hot melt pressure sensitive adhesives (HMPSAs) are a sub-type used in labels, tapes, hygiene products (e.g., sanitary napkins) because they provide tack at room temperature and immediate bonding under pressure.
4.5 Other Specialty Uses
Automotive assembly, electronics, laminates, displays, composite manufacturing are also sectors where hot melts are used—especially when automation and rapid bonding are required.
5. How to Choose the Right Hot Melt Adhesive
5.1 Define your requirements
Before picking an adhesive, answer key questions:
-
What substrates are being bonded (paper, plastic films, wood, metal, fabric)?
-
What line speed and application method?
-
What service conditions: temperature, humidity, mechanical stress, vibration?
-
What equipment/applicator is available?
-
Are there regulatory or environmental requirements (solvent-free, food contact, low VOC)?
5.2 Match adhesive type to application
-
For general packaging: EVA or standard hot melts may suffice.
-
For heat or chemical demanding applications: Choose higher performance polymer system (PUR, polyamides).
-
For pressure sensitive applications: Use HMPSA.
-
For temperature‐sensitive substrates: Consider low-melt hot adhesive grades designed for lower application temperature.
5.3 Review datasheets and technical guidance
Check key specs: melt temperature, viscosity, set time, open time, service temperature range, bond strength, substrate compatibility. Refer to supplier’s application guidelines.
5.4 Pilot testing
Always test the adhesive on your actual substrates and process conditions. Evaluate bonds after curing, check for peel strength, shear strength, ageing, environmental exposure.
6. Application & Processing Best Practices
6.1 Equipment and application methods
Hot melts can be applied via: glue guns (for small scale), nozzle/slot dies, spray systems, bulk applicators with melt tanks and hoses.
Ensure applicator is compatible with adhesive grade (temperature, viscosity, bead size).
6.2 Substrate preparation
Ensure substrates are clean, dry, and free of contamination (dust, oil, moisture) so adhesive can wet properly and form a good bond.
6.3 Control temperature and application rate
-
Melt temperature must follow manufacturer’s guideline — too high can degrade adhesive; too low may cause poor wetting or stringing.
-
The bead size and contact pressure must be appropriate for the substrates and joint design.
6.4 Bonding & set time
Apply the molten adhesive, bring substrates together within the adhesive’s open time window, and apply appropriate pressure while cooling to ensure full contact.
6.5 Safety and storage
Since molten adhesive is hot and may burn, ensure safety measures are in place. Storage of solid adhesive must avoid moisture pickup or contamination.
7. Common Troubleshooting & Issues
| Issue | Possible Cause | Solution |
|---|---|---|
| Poor adhesion (delamination) | Wrong adhesive grade, insufficient wetting, dirty substrate | Select grade compatible with substrates; clean surfaces; test again |
| Stringing or dripping from applicator | Melt temperature too high or viscosity too low | Reduce temperature; check applicator settings |
| Bead runs or spreads too much | Bead size too large; substrate too hot; poor containment | Adjust bead size; pre-cool substrate; use correct applicator |
| Bond fails under heat or environmental stress | Adhesive service temperature not adequate | Use higher performance system (PUR or polyamide) |
| Nozzle clogging or frequent maintenance | Adhesive charing or degradation due to overheating | Check melt tank temperature; service equipment regularly |
8. Summary & Key Takeaways
-
Hot melt adhesives are a versatile, fast-setting adhesive technology widely used in packaging, finishing, woodworking and other industrial applications.
-
The right choice depends on substrate, application method, line speed and service conditions.
-
Understanding formulation (polymer type, tackifier, wax, additives) helps in selecting and troubleshooting.
-
Proper equipment, correct processing parameters and substrate preparation are critical to achieving reliable bonds.
-
Pilot testing and working with a knowledgeable supplier significantly increase the odds of success.
